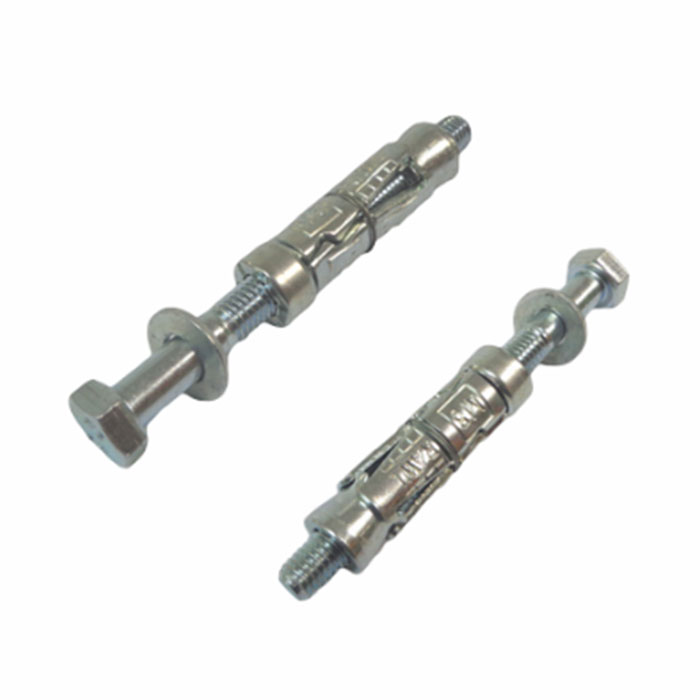

Rawlplug Fastener Rawlbolt M840L – 2 Pack

Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size. The collapsible ferrule ensures positive clamping force is transmitted to the fixture. Suitable for use in concrete, brickwork and stone. Bolt Size: M10 Bolt length: 140mm Bolt head diameter: 17mm Washer diameter: 21mm Shield length: 60mm Fixture thickness: Max 75mm Min 0mm Hole diameter in fixture: 11mm Hole diameter in struct: 16mm Minimum hole depth: 65mm Effective embedment depth: 50mm Minimum substrate thickness: 100mm Recommended torque: 30N/mm2 concrete 27 Recommended torque: 20.5N/mm2 brickwork 13

Expansion shield anchor, suitable for concrete, brickwork & stone. Hole diameter: 20mm Min hole depth: 85mm Bolt length: 90mm Shield length: 75mm Max fixture thickness: 10mm

Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size. The collapsible ferrule ensures positive clamping force is transmitted to the fixture. Suitable for use in concrete, brickwork and stone. Bolt Size: M6 Bolt length: 70mm Bolt head diameter: 10mm Washer diameter: 12.5mm Shield length: 45mm Fixture thickness: Max 25mm Min 0mm Hole diameter in fixture: 6.5mm Hole diameter in struct: 12mm Minimum hole depth: 50mm Effective embedment depth: 35mm Minimum substrate thickness: 70mm Recommended torque: 30N/mm2 concrete 6.5 Recommended torque: 20.5N/mm2 brickwork 5.0

Suitable for use in cracked and non-cracked concrete, hollowcore slabs, flooring blocks and ceramics. Recommended for applications requiring fire resistance. With a three-piece expanding sleeve of maximum expansion to provide optimal load and safety of use in any substrate. Size x Max. Fixture Thickness: M8 x 25mm Overall Length: 80mm Drill ?: 9mm
