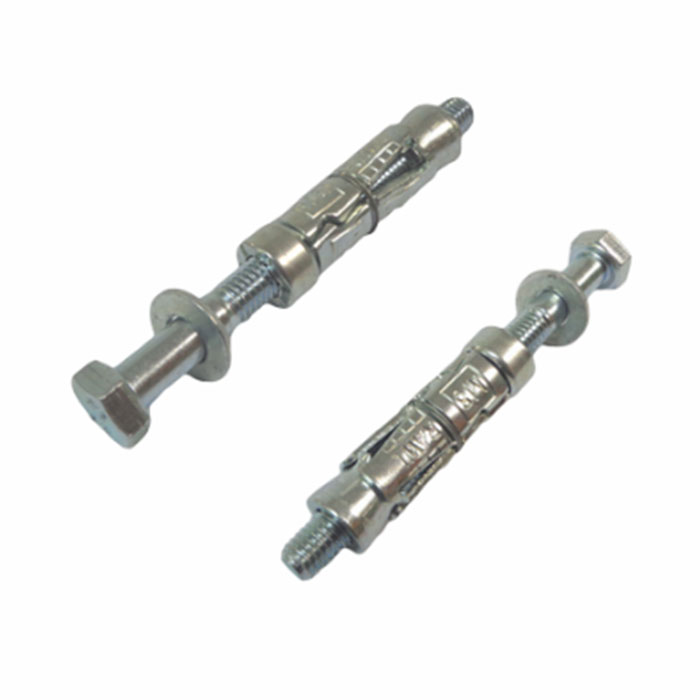

Rawlplug Fastener Rawlbolt M825L – 4 Pack
$33.00 TTD
Suitable for use in cracked and non-cracked concrete, hollowcore slabs, flooring blocks and ceramics. Recommended for applications requiring fire resistance.
With a three-piece expanding sleeve of maximum expansion to provide optimal load and safety of use in any substrate.
Size x Max. Fixture Thickness: M8 x 25mm
Overall Length: 80mm
Drill ?: 9mm
4 in stock
Related products
Rawlplug Fastener Rawlbolt M10.75L
Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size.
The collapsible ferrule ensures positive clamping force is transmitted to the fixture.
Suitable for use in concrete, brickwork and stone.
Bolt Size: M10
Bolt length: 140mm
Bolt head diameter: 17mm
Washer diameter: 21mm
Shield length: 60mm
Fixture thickness: Max 75mm Min 0mm
Hole diameter in fixture: 11mm
Hole diameter in struct: 16mm
Minimum hole depth: 65mm
Effective embedment depth: 50mm
Minimum substrate thickness: 100mm
Recommended torque: 30N/mm2 concrete 27
Recommended torque: 20.5N/mm2 brickwork 13
Rawlplug Fastener Rawlbolt M16.60L
Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size.
The collapsible ferrule ensures positive clamping force is transmitted to the fixture.
Suitable for use in concrete, brickwork and stone.
Bolt Size: M16
Bolt length: 180mm
Bolt head diameter: 24mm
Washer diameter: 30mm
Shield length: 115mm
Fixture thickness: Max 60mm
Fixture thickness: Min 30mm
Hole diameter in fixture: 17mm
Hole diameter in struct: 25mm
Minimum hole depth: 125mm
Effective embedment depth: 95mm
Minimum substrate thickness: 190mm
Recommended torque: 30N/mm2 concrete 120
Rawlplug Fastener Rawlbolt M610L – 2 Pack
Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size.
The collapsible ferrule ensures positive clamping force is transmitted to the fixture.
Suitable for use in concrete, brickwork and stone.
Bolt Size: M6
Bolt length: 55mm
Bolt head diameter: 10mm
Washer diameter: 12.5mm
Shield length: 45mm
Fixture thickness: Max 10mm Min 0mm
Hole diameter in fixture: 6.5mm
Hole diameter in struct: 12mm
Minimum hole depth: 50mm
Effective embedment depth: 35mm
Minimum substrate thickness: 70mm
Recommended torque: 30N/mm2 concrete 6.5
Recommended torque: 20.5N/mm2 brickwork 5.0
Rawlplug Fastener Rawlbolt M625L – 2 Pack
Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size.
The collapsible ferrule ensures positive clamping force is transmitted to the fixture.
Suitable for use in concrete, brickwork and stone.
Bolt Size: M6
Bolt length: 70mm
Bolt head diameter: 10mm
Washer diameter: 12.5mm
Shield length: 45mm
Fixture thickness: Max 25mm Min 0mm
Hole diameter in fixture: 6.5mm
Hole diameter in struct: 12mm
Minimum hole depth: 50mm
Effective embedment depth: 35mm
Minimum substrate thickness: 70mm
Recommended torque: 30N/mm2 concrete 6.5
Recommended torque: 20.5N/mm2 brickwork 5.0
Rawlplug Fastener Rawlbolt M840L – 2 Pack
Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size.
The collapsible ferrule ensures positive clamping force is transmitted to the fixture.
Suitable for use in concrete, brickwork and stone.
Bolt Size: M8
Bolt length: 95mm
Bolt head diameter: 13mm
Washer diameter: 17mm
Shield length: 50mm
Fixture thickness: Max 40mm Min 0mm
Hole diameter in fixture: 9mm
Hole diameter in struct: 14mm
Minimum hole depth: 55mm
Effective embedment depth: 40mm
Minimum substrate thickness: 80mm
Recommended torque: 30N/mm2 concrete 15
Recommended torque: 20.5N/mm2 brickwork 7.5
