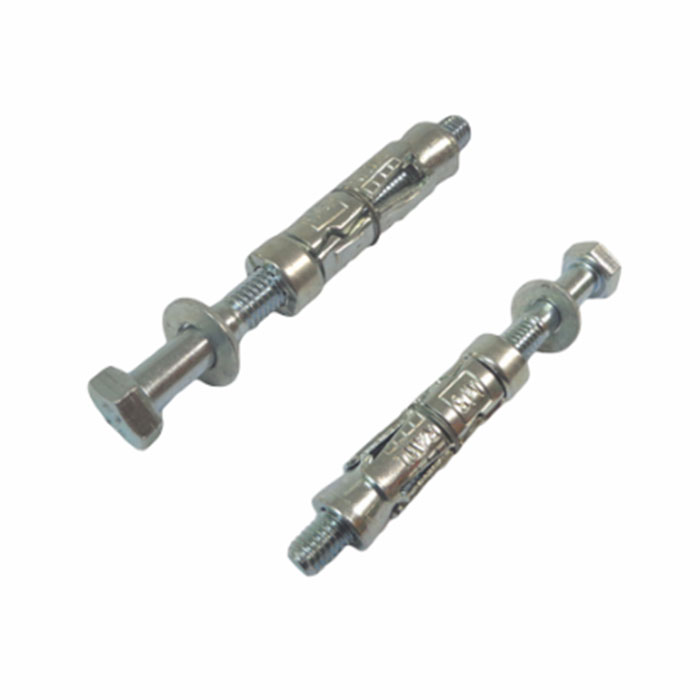

Rawlplug Fastener Rawlbolt M640L – 4 Pack

Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size. The collapsible ferrule ensures positive clamping force is transmitted to the fixture. Suitable for use in concrete, brickwork and stone. Bolt Size: M10 Bolt length: 140mm Bolt head diameter: 17mm Washer diameter: 21mm Shield length: 60mm Fixture thickness: Max 75mm Min 0mm Hole diameter in fixture: 11mm Hole diameter in struct: 16mm Minimum hole depth: 65mm Effective embedment depth: 50mm Minimum substrate thickness: 100mm Recommended torque: 30N/mm2 concrete 27 Recommended torque: 20.5N/mm2 brickwork 13

Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size. The collapsible ferrule ensures positive clamping force is transmitted to the fixture. Suitable for use in concrete, brickwork and stone. Bolt Size: M10 Bolt length: 115mm Bolt head diameter: 17mm Washer diameter: 21mm Shield length: 60mm Fixture thickness: Max 50mm Min 0mm Hole diameter in fixture: 11mm Hole diameter in struct: 16mm Minimum hole depth: 65mm Effective embedment depth: 50mm Minimum substrate thickness: 100mm Recommended torque: 30N/mm2 concrete 27 Recommended torque: 20.5N/mm2 brickwork 13

Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size. The collapsible ferrule ensures positive clamping force is transmitted to the fixture. Suitable for use in concrete, brickwork and stone. Bolt Size: M16 Bolt length: 180mm Bolt head diameter: 24mm Washer diameter: 30mm Shield length: 115mm Fixture thickness: Max 60mm Fixture thickness: Min 30mm Hole diameter in fixture: 17mm Hole diameter in struct: 25mm Minimum hole depth: 125mm Effective embedment depth: 95mm Minimum substrate thickness: 190mm Recommended torque: 30N/mm2 concrete 120

Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size. The collapsible ferrule ensures positive clamping force is transmitted to the fixture. Suitable for use in concrete, brickwork and stone. Bolt Size: M8 Bolt length: 95mm Bolt head diameter: 13mm Washer diameter: 17mm Shield length: 50mm Fixture thickness: Max 40mm Min 0mm Hole diameter in fixture: 9mm Hole diameter in struct: 14mm Minimum hole depth: 55mm Effective embedment depth: 40mm Minimum substrate thickness: 80mm Recommended torque: 30N/mm2 concrete 15 Recommended torque: 20.5N/mm2 brickwork 7.5
